GAC25S
HLB
848330
Product Description

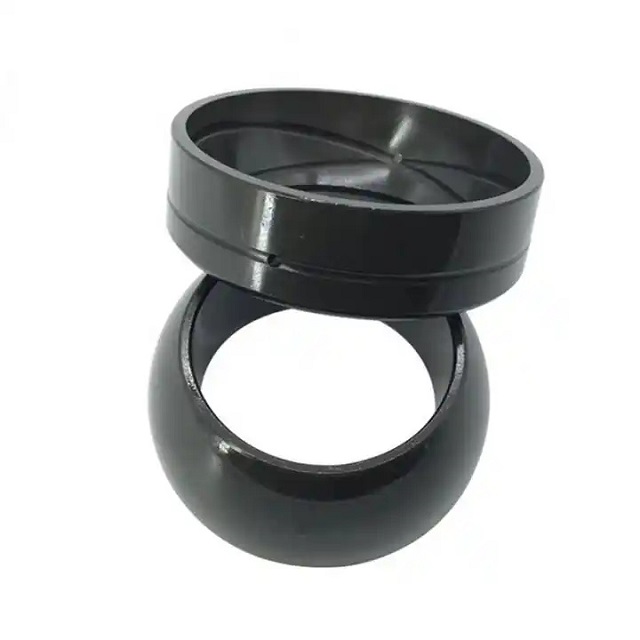

GAC...S Series
Sliding contact surfaces: steel/steel
Bearing rings of carbon chromium steel, hardened and phosphated, sliding surface treated with MoS2. It has characteristics of wear-resistance, wear-corrosion and self-aligning, suitable for radial loads and single direction axial loads mechanism.
| Bearing Number | d | D | B | C | dk | Weight |
| GAC25S | 25 | 47 | 15 | 14 | 42 | 0.148 |
| GAC28S | 28 | 52 | 15 | 15 | 47 | 0.186 |
| GAC30S | 30 | 55 | 17 | 15 | 49.5 | 0.208 |
| GAC32S | 32 | 58 | 17 | 16 | 52 | 0.241 |
| GAC35S | 35 | 62 | 18 | 16 | 55.5 | 0.268 |
| GAC40S | 40 | 68 | 19 | 17 | 62 | 0.327 |
| GAC45S | 45 | 75 | 20 | 18 | 68.5 | 0.416 |
| GAC50S | 50 | 80 | 20 | 19 | 74 | 0.455 |
| GAC55S | 55 | 90 | 23 | 20 | 82 | 0.645 |
| GAC60S | 60 | 95 | 23 | 21 | 88.5 | 0.714 |
| GAC65S | 65 | 100 | 23 | 22 | 93.5 | 0.759 |
| GAC70S | 70 | 110 | 25 | 23 | 102 | 1.04 |
| GAC75S | 75 | 115 | 25 | 24 | 107 | 1.12 |
| GAC80S | 80 | 125 | 29 | 25.5 | 115 | 1.54 |
| GAC85S | 85 | 130 | 29 | 26.5 | 122 | 1.61 |
| GAC90S | 90 | 140 | 32 | 28 | 128.5 | 2.09 |
| GAC95S | 95 | 145 | 32 | 29.5 | 135 | 2.22 |
| GAC100S | 100 | 150 | 32 | 31 | 141 | 2.34 |
| GAC105S | 105 | 160 | 35 | 32.5 | 148 | 2.93 |
| GAC110S | 110 | 170 | 38 | 34 | 155 | 3.68 |
| GAC120S | 120 | 180 | 38 | 37 | 168 | 3.97 |
| GAC130S | 130 | 200 | 45 | 43 | 188 | 5.92 |
| GAC140S | 140 | 210 | 45 | 43 | 198 | 6.33 |
| GAC150S | 150 | 225 | 48 | 46 | 211 | 8.01 |
| GAC160S | 160 | 240 | 51 | 49 | 225 | 9.79 |
| GAC170S | 170 | 260 | 57 | 55 | 246 | 12.3 |
| GAC180S | 180 | 280 | 64 | 61 | 260 | 17.4 |
| GAC190S | 190 | 290 | 64 | 62 | 275 | 18.2 |
| GAC200S | 200 | 310 | 70 | 66 | 290 | 23.8 |
Company Profile
Shandong Halin Group was founded in 1999, located in Linqing city, Shandong province,the hometown of bearing in China.The company covers an area of 50000㎡with construction area 30000㎡, registered capital of 54.68 million RMB. The company has five advanced bearing grinding processing production lines .Now HLB bearing has more than 200 employees, including 20 professional technicians. HLB bearing has established the excellent Quality Operation System,successfully achieved ISO9001:2015 and IATF16949:2016.
HLB bearing is specializes in auntomotive taper roller bearings,spherical plain bearings, deep groove ball bearings etc. The size range of bearing outer diameter is Φ 20mm－Φ500 mm. Now HLB bearing has formed an annual production capacity of 2 million sets ,with more than 30 varieties of bearings .The bearing precision can be P0, P6, P5 and P4 . HLB bearing is widely used in automobile, construction machineries, agricultural equipments,electrical motors etc .And exporting to Europe, North America and other regions.
Packaging Details:
1. Industrial packing+cartons+pallets
2. Individual box packing+cartons+pallets
3. Tube packing+cartons+pallets
Delivery Details:
Less than 1000pcs, deliver within 7days by Express or Airplane.
More than 1000pcs, deliver within 10-30days by sea.
FAQ:
1. Are you a factory or a trading company?
Shandong Halin Group (Bearing) Co., Ltd. is a professional manufacture of spherical plain bearing, taper roller bearing, deep groove ball bearing and other bearings.
2. Is OEM available?
Yes, OEM is available. We have professional designer to help your brand promotion.
3. Is the sample available?
Yes, samples are available for you to test the quality.
4. Have the products been tested before shipping?
Yes, all of our bearings have been tested before delivery.
5. How long is your delivery time?
As mentioned above, there are different types of shipping for your order. We make sure to deliver goods once all products are produced and tested.
6. What is your terms of payment ?
You can pay by T/T, L/C, Westunion, Paypal,etc., and it can be negotiated according to different orders with different amount.
7. Can we visit your factory ?
Sure. Welcome to HLB Bearing Company(Shandong Halin Group Co.,Ltd). And offer your kind guidance.
