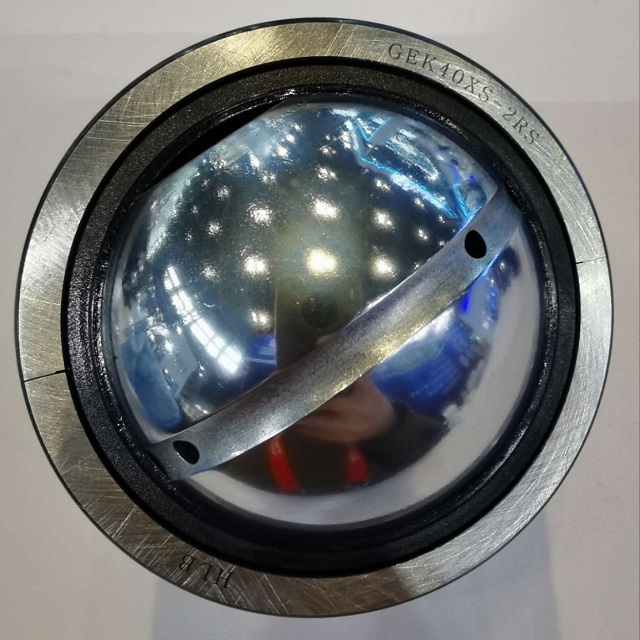

GEK40XS-2RS
HLB
84833
Product Description
GEK...XS-2RS Series
Sliding friction pair: steel/steel
The outer ring is a split type, which is divided into two halves along the axial direction and fixed with locking springs. Both sides are equipped with sealing rings. The inner and outer materials are bearing steel, quenched, and the spherical surface is plated with hard chromium. It has the characteristics of self-lubrication, wear resistance, and self centering. Suitable for dusty environments and mechanical mechanisms that can withstand radial heavy loads and axial loads that are not significant in any direction.
| Bearing Number | d | D | B | C | dk | Weight |
| GEK25XS-2RS | 25 | 68 | 40 | 28 | 50 | 0.738 |
| GEK30XS-2RS | 30 | 70 | 47 | 32 | 60 | 0.887 |
| GEK35XS-2RS | 35 | 80 | 54 | 38 | 70 | 1.355 |
| GEK40XS-2RS | 40 | 90 | 64 | 44 | 80 | 1.979 |
| GEK45XS-2RS | 45 | 100 | 72 | 52 | 90 | 2.809 |
| GEK50XS-2RS | 50 | 110 | 80 | 58 | 100 | 3.775 |
| GEK55XS-2RS | 55 | 125 | 90 | 64 | 110 | 5.432 |
| GEK60XS-2RS | 60 | 135 | 98 | 72 | 120 | 7.011 |
| Comparison table of some countries spherical plain bearing | |||||
| Bearing Type | 中国CHINA | 瑞典SKF | 德国INA | 日本IKO | 美国RBC |
| radial spherical plain bearing | GE…E | GE…E | GE…DO | GE…E | MB |
GE…ES | GE…ES | GE…ES | |||
GE…ES-2RS | GE…ES-2RS | GE…DO-2RS | GE…ES-2RS | MB…SS | |
GEG…E | GEH…ES | GE…FO | GE…G | MBH… | |
GEG…ES | GE…GS | ||||
GEG…ES-2RS | GEH…ES-2RS | GE…FO-2RS | GE…GS-2RS | MBH…SS | |
GEW…ES | GEG…ES | GE…LO | MB…E | ||
GEM…ES-2RS | GEM…ES-2RS | GE…HO-2RS | MB…ESS | ||
GEZ…ES | GEZ…ES | GE…ZO | SBB | B…L | |
GEZ…ES-2RS | GEZ…ES-2RS | GE…ZO-2RS | SBB…2RS | B…LSS | |
GEGZ…ES | BH…L | ||||
GEGZ…ES-2RS | BH…LSS | ||||
GEWZ…ES | B…EL | ||||
GEWZ…ES-2RS | B…ELSS | ||||
GEBK…S | PB… | ||||
GEC…XS | GE…DO | ||||
| maintenance-free radial spherical plain bearing | GE…C | GE…C | GE…UK | ||
GEG…C | GEH…C | GE…FW | |||
GE…ET-2RS | GE…TE-2RS | GE…UK-2RS | MB…FSS | ||
GE…XT-2RS | GE…TA-2RS | GE…UK-2RS | MB…LFSS | ||
GEG…ET-2RS | GE…FW-2RS | ||||
GEG…XT-2RS | GE…FW-2RS | ||||
GEZ…ET-2RS | GEZ…ET-2RS | GE…PW | B…LFSS | ||
| angular contact spherical plain bearing | GAC…S | GE…SX | MB…SA | ||
GACZ…S | B…SA | ||||
GAC…T | GE…SW | ||||
| spherical plain thrust bearing | GX…S | GE…AX | |||
GX…T | GE…AW | ||||
Company Profile
Shandong Halin Group was founded in 1999, located in Linqing city, Shandong province,the hometown of bearing in China.The company covers an area of 50000㎡with construction area 30000㎡, registered capital of 54.68 million RMB. The company has five advanced bearing grinding processing production lines .Now HLB bearing has more than 200 employees, including 20 professional technicians. HLB bearing has established the excellent Quality Operation System,successfully achieved ISO9001:2015 and IATFI16949:2016.
HLB bearing is specializes in auntomotive taper roller bearings,spherical plain bearings, deep groove ball bearings etc. The size range of bearing outer diameter is Φ 20mm－Φ500 mm. Now HLB bearing has formed an annual production capacity of 2 million sets ,with more than 30 varieties of bearings .The bearing precision can be P0, P6, P5 and P4 . HLB bearing is widely used in automobile, construction machineries, agricultural equipments,electrical motors etc .And exporting to Europe, North America and other regions.
HLB Spherical Plain Radial Bearing Advantage（6 points）
1. Strict material testing——he chemical composition of the material is not in the standard, the quenching tissue will not be qualified, we will not only ask the supplier to provide material proof, after the factory also has its own spectrum or assay to confirm.
2. Strict treatment structure——We not only require the heat treatment manufacturers to provide hardness & metallographic report, but also need do the detection of hardness and metallographic confirmation after arrived company.
3. In the design—— Improved the lower limit of quenching hardness of the outer ring.
4. In the processing process——For example, we are strictly required to outline "convex degree", this is the requirement of contact stress.
5. We will not follow the market of material, to leave hidden dangers to the quality of the bearing.
6. In terms of management, we implement production standardization and product filing.
Packaging ＆ Delivery
Packaging Details:
1. Industrial packing+cartons+pallets
2. Individual box packing+cartons+pallets
3. Tube packing+cartons+pallets
Delivery Details:
Less than 1000pcs, deliver within 7days by Express or Airplane.
More than 1000pcs, deliver within 10-30days by sea.
FAQ
1. Are you a factory or a trading company?
Shandong Halin Group (Bearing) Co., Ltd. is a professional manufacture of spherical plain bearing, taper roller bearing, deep groove ball bearing and other bearings.
2. Is OEM available?
Yes, OEM is available. We have professional designer to help your brand promotion.
3. Is the sample available?
Yes, samples are available for you to test the quality.
4. Have the products been tested before shipping?
Yes, all of our bearings have been tested before delivery.
5. How long is your delivery time?
As mentioned above, there are different types of shipping for your order. We make sure to deliver goods once all products are produced and tested.
6. What is your terms of payment ?
You can pay by T/T, L/C, Westunion, Paypal,etc., and it can be negotiated according to different orders with different amount.
7. Can we visit your factory ?
Sure. Welcome to HLB Bearing Company(Shandong Halin Group Co.,Ltd). And offer your kind guidance.
